HCPL-3020-300 Original stock-wholesale price

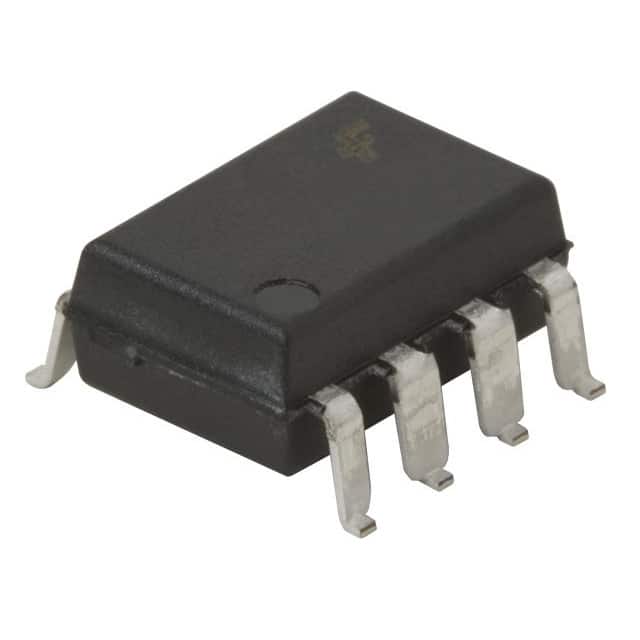

The image is for reference only



Broadcom Limited HCPL-3020-300

Manufacturer Model： HCPL-3020-300
Manufacturer： Broadcom Limited
Package/Specification

Product Description： OPTOISO 3.75KV GATE DVR 8DIP GW

Place of delivery：China （Including VAT） Lead time(weekday）：2 hour shipping

Stock：

Spot goods3590（1 Starting order） (China：2 hour shipping)

Quantity：x（unit-price）Not the latest price, please consult customer service for details「Package(TR) / 1」

Consult Now

Advantage spot

4-11404-2

T3477-018

SBM51214G

I-2X12FOM3LM-CAS-MA

I-2X12FOM3LM-CAS-MB

I-2X12FOM3LM-CAS-FA

Product Details
Technical Documentation

Product Classification	Isolators - Gate Drivers
Mfr	Broadcom Limited
Series	-
Package	Tube
Product Status	Discontinued at Digi-Key
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	10kV/µs
Propagation Delay tpLH / tpHL (Max)	700ns, 700ns
Pulse Width Distortion (Max)	-
Current - Output High, Low	50ns, 50ns
Current - Output High, Low	200mA, 200mA

Technical Documentation
Data Book	HCPL-3020-300.pdf
